Chane 740s

Price per Pair

Complete Immersion

Chane's 700 Series is already reknown for impressive soundfields for music and cinema. The Chane 740s onwall surround and effects speaker completes this experience. The 740s is purpose-designed and engineered to complement main channel models 752 and 753.

700 Series: The most immersive sound we've made yet

The new 740s onwall surround speaker is both compact in size and powerful in acoustical scale. It's perfect for the substantial 700 Series multichannel system and experience.

Deploy the 740s in each of your auxiliary channels. Like all 700 Series models, 740s has the heart of a dynamic, professional grade cinema speaker but the design and fidelity of an audiophile speaker.

Confirm Chane's superior sound in our reviews forum. Stop in for real reports from real users!

Specifications

  • Frequency Response - 80Hz - 17kHz (+/- 3dB)
  • Impedance - 4 Ohms nominal
  • Sensitivity - 92.5dB (2.83v, 1M)
  • 1" Polyamide compression driver and 5" aluminum treble waveguide
  • 165mm (6.5") Kevlar Nomex sandwich midbass driver
  • Tuned port reflex bass system
  • Dimensions - 190 x 205 x 330mm; 7.5 x 8.1 x 13in (DxWxH)
  • Weight - 11 Kg; 25 lbs
  • Suggested Amplifier - 20-80W

The Chane 740s is a dedicated on-wall surround and effects loudspeaker must be electronically limited to operate not lower than 80Hz.

Chane rates speakers sensibly, in accordance with acoustical physics and typical real use. Learn more about how speakers work here.

Features

  • The 740s is packed individually in heavy foam cradles and heavy carton.
  • The 740s includes Chane Music & Cinema's 30-day in-home satisfaction guarantee (see Terms)
  • 1" treble compression driver: single piece Polyimide diaphragm and FEM optimized ellipsoidal suspension; edge-wound high temperature voice coil on Nomex former
  • 1500Hz round aluminum treble horn
  • 165mm (6.5") midbass driver: Carbon fiber honeycomb Nomex sandwich cone with anodized aluminum dustcap; cast aluminum frame; 1.4" voicecoil; double-vented motor
  • Chane's exclusive three-domain-optimized crossover network
  • Tuned ported bass alignment
  • 18mm MDF cabinet with internal shelf brace
  • Simulated black ash cabinet case with molded fine pebble black driver baffle
  • VESA compatible rear mounting provision included
  • Double steel keyhole wall hangers

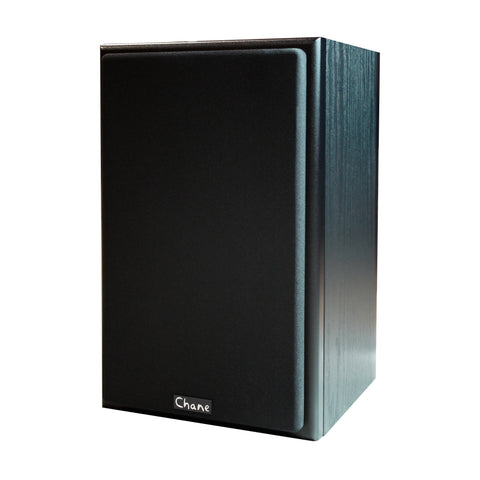

  • Removable black knit grille with magnetic fasteners

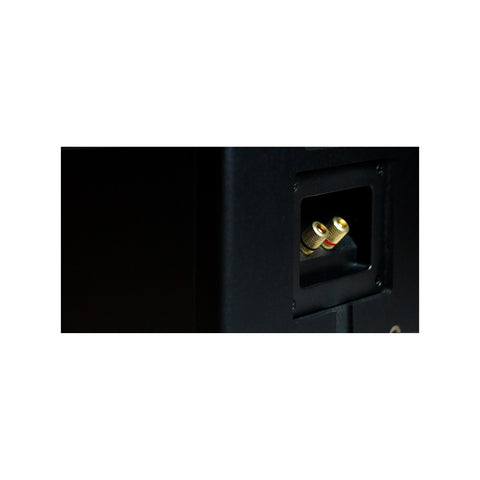

  • Standard 5-way terminals and input cup
