Miami

Voice of the Home's classic, reference music playback instrument. Vivid, textural music from a slightly more compact, more contemporary form with higher sensitivity. Suitable for moderate-power single-ended tube amplifiers and above.

Baltic Birch horns are solid fine-ply laminate and clear-finished. Horns and/or cabinets may be stained for a fee. Contact us for this and other options.

Go into more depth about Miami in our forum.

*Sapele is a fine hardwood and may show natural hue variations.

• 16" Alnico bass driver with cellulose cone and flat wire underhung voice coil for superb definition

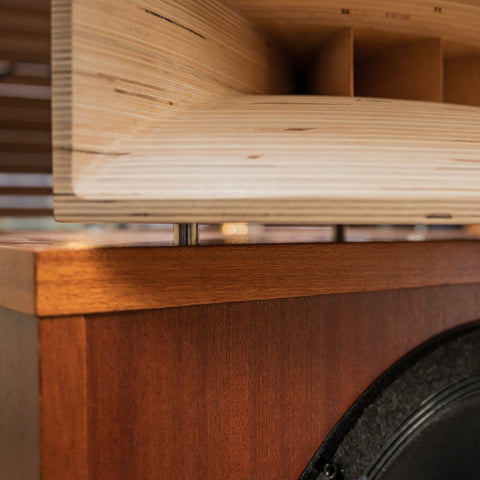

• 400Hz 90x40 degree laminated Baltic Birch broadcast-style top horn. 1.4" compression driver with nitrided titanium diaphragm, proprietary phase plug, edge-wound high temperature voice coil, ellipsoidal suspension.
• Fine natural all-veneer cabinet. Computer-machined and hand-assembled in Upstate South Carolina. Cabinets and horns are finished in a hard, catalyzed semi-gloss lacquer.
• Reinforced 18mm and 25mm veneer laminate plywood casework with constrained, damped internal driver board. Extensive four-ply viscous acoustical and vibration control measures on all interior surfaces
• Optimally tuned reflex alignment for superb bass and extension. Down-firing.
• Exclusive three-domain-optimized custom crossover network: Clarity PUR capacitors, Jantzen Wax Coil inductors, non-magnetic bifilar power resistors. Options available.

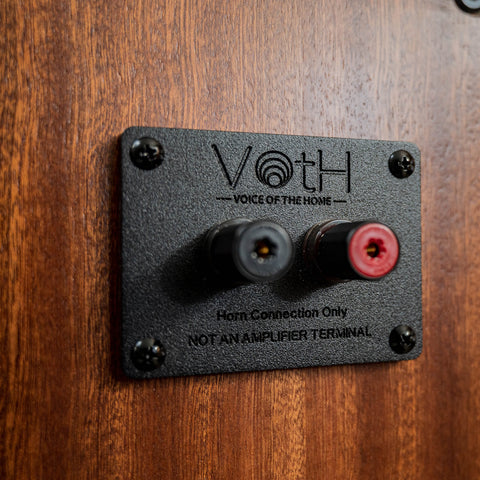

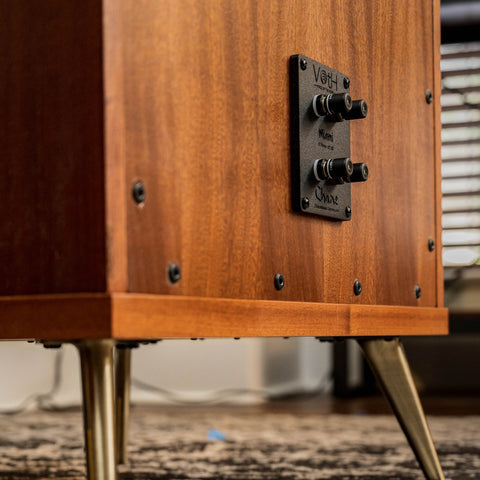

• Premium quality biwired input terminals and matching output plate to horn driver terminals. Easy plug-in setup.

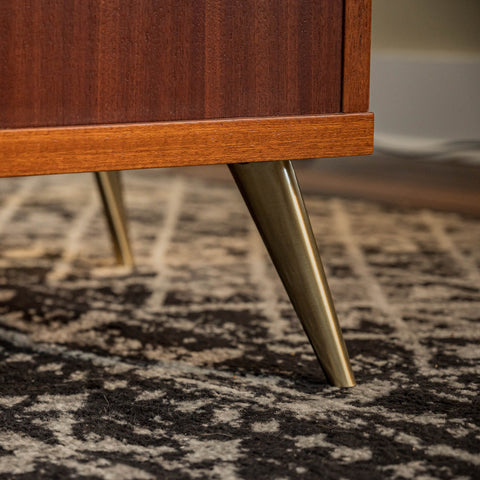

• Miami ships with 6" solid metal legs installed
• Miami is generally built to order. Kindly allow 4-6 weeks to-dock.
• Packed individually in shipping cradles, double-wall carton, and palleted in pairs. Ship by truck.
• Miami includes Chane Music & Cinema's five year warranty (see Terms).

• Frequency response, nominal – 36Hz – 18.5kHz +/- 3dB; 20kHz -6dB
• Average bass response, room, calculated – 32Hz -6dB
• Impedance, nominal - 10 ohms
• Impedance, minimum (bass driver) - 8.25 ohms
• Sensitivity - 96 dB room; 93dB calculated power (2.83v)*
• Dimensions, bass cabinet – 565 x 420 x 745mm; 22.25 x 16.5 x 29.3in (WxDxH). Add 6" for legs
• Net weight - Approx 100lbs
• Recommended amplifier – 3-100 W
• Driver-rated music power, bass - 250W

*Chane rates speakers sensibly, in accordance with physics and typical real use.
